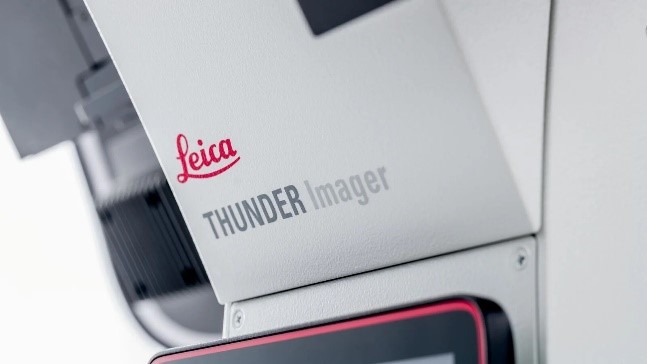

Leica Thunder with Tirf and infinity scanner

Equipment for Light Microscopy

Technical details light microscope:

Microscope: Thunder
Optics:

  • Lens 100 x: yes, Tirf
  • Lens 63x: yes, Water
  • Lens 40x: yes, 2x Water, Oil
  • Lens 20x: yes
  • Lens 10x: yes
  • Lens 4x: no

Light sources:

  • Laserlines: 488, 561
  • Krypton lamp: no
  • Mercury lamp: no
  • Halogen lamp: yes
  • Xenon lamp: no
  • LED lamp: 405, 488, 551, 647

Detectors:

  • Detector: Prime 95B sCMOS
  • Max resolution: 1608×1608
  • Frames/sec: 60

Software/techniques:

  • Software: LasX (Metamorph)
  • FRAP: yes
  • FLIP: yes
  • FRET: yes
  • time series: yes
  • 3D: yes
  • Deconvolution: yes
  • Computational clearing: yes
  • Panels: yes
  • Point visiting: yes

Additional features:

  • Temp control: RT- 40°C
  • CO2 control: yes
  • Autom. Z scan: yes
  • Motorized stage: yes

Facilities where you can find this equipment:

Cell Microscopy Core Multi-scale Spatial Omics Platform
