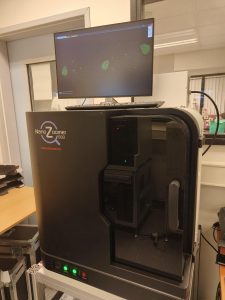

Hamamatsu Nano zoomer S60 (brightfield and fluorescent)

The NanoZoomerⓇ Series is a family of whole slide scanners that convert glass slides into high-resolution digital data by high-speed scanning. Scanned data can be viewed on a PC monitor by using the dedicated viewer software, and patented navigation map technique* delivers slide viewing environment just as if operating a microscope. Link to viewer software: https://www.hamamatsu.com/eu/en/product/type/U12388-01/index.html

Technical details of the scanners:

• Fluorescent slides
• Large (Wholemount) slides
• Fluorescent  filters: DAPI/FITC/TRITC
• Fluoresent Dyes: DAPI/ Alexa 488/ Alexa 568
• Objective lens 20X (user can select 20x or 40X mode at start of scanning)

Scanning resolution:

• 20 X approx. 0.46 µm/pixel
• 40X approx. 0.23 µm/pixel

Compatible glass slides:

• 25.0 mm to 26.0 mm x 75.0 mm to 76.0 mm (thickness 0.9 mm to 1.2 mm)
• 51.0 mm to 52.0 mm x 75.0 mm to 76 .0 mm thickness 0.9 mm to 1.2 mm)
